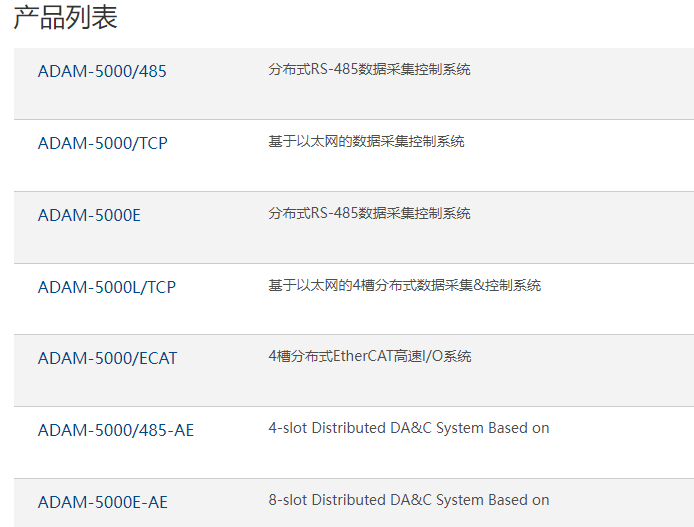

I/O Rack

ADAM-5000/485 and ADAM-5000E systems conform to the EIA RS-485 communication standard. RS-485 was specifically developed for industrial applications to transmit and receive data at high rates over long distances. The ADAM-5000L/TCP and ADAM-5000/TPC are both Ethernet-based I/O systems. Without a repeater, they can cover a communication distance up to 100M. This allows remote configuration via Ethernet and eight PCs can simultaneously access the data.

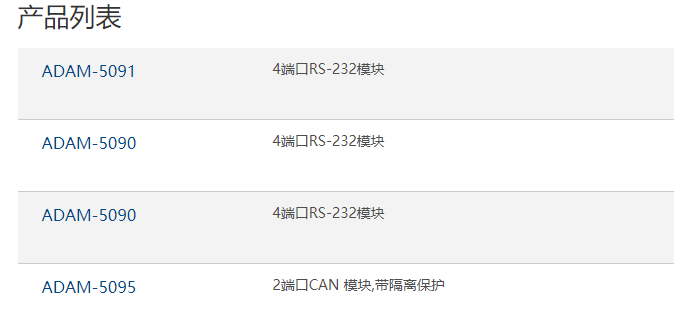

Communication Modules

ADAM-5000 communication modules, including the ADAM-5091 and ADAM-5095, are equipped with serial ports to enable easy expandability and bi-directional communications. The communication module, such as the ADAM-5091 and ADAM-5095, is designed to be integrated with the ADAM-4000 and ADAM-5000 series, and transmit data to each other through the serial ports.

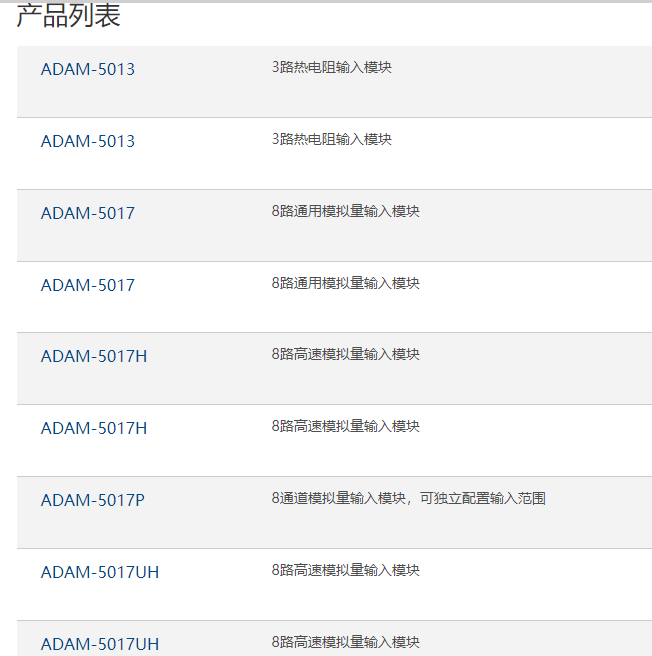

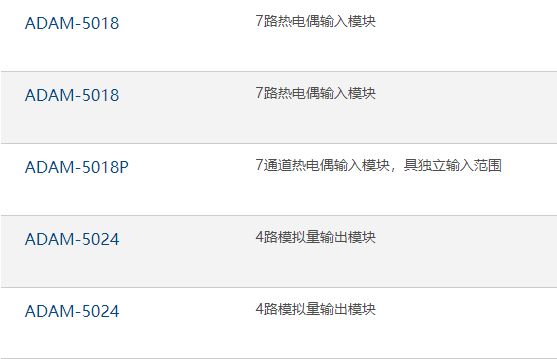

Analog I/O Modules

ADAM-5000 analog input/output modules offer the different voltage and current range, thermal couple and RTD. And the different sampling rate that user can find the suitable one to fulfill their application. ADAM-5017P and ADAM-5018P are channel-independent and provide high common mode up to 200VDC and isolation protection
